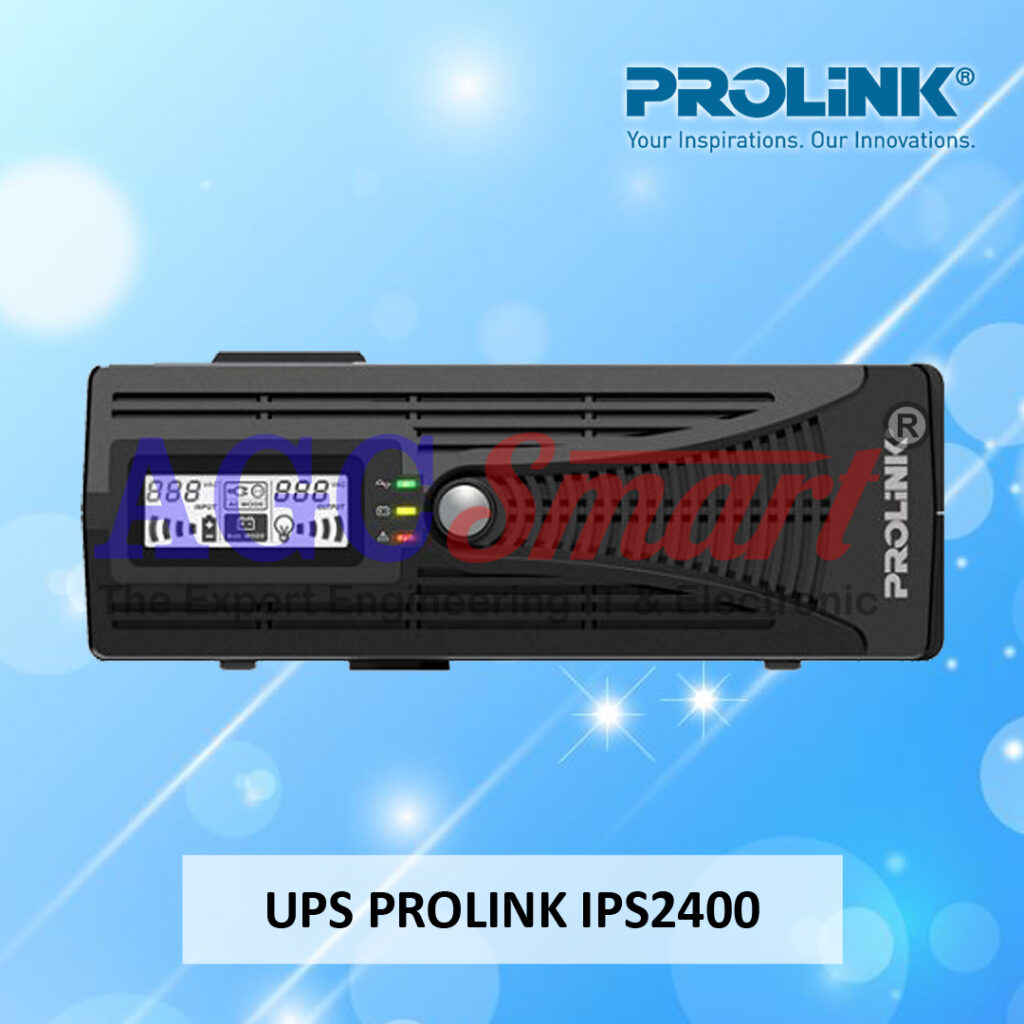

UPS PROLINK IPS2400
| Stok | |
| Kategori | PROLINK |
UPS PROLINK IPS2400
UPS PROLINK IPS2400
Deskripsi UPS PROLINK IPS 2400 – ComputerIndonesia.Com
PROLINK IPS 2400
Fungsi utama sebagai inverter dan dapat berfungsi sebagai UPS.
Daya Keluar: 2400VA / 1440W
Voltase Masuk:
– Voltage : 220/230/240 VAC
– Acceptable Voltage Range:
— 170 – 280 VAC (UPS mode)
— 90 – 280 VAC (INV. Mode)
– Frequency Range : 60Hz or 50 Hz (auto sensing)
Voltase Keluar:
– AC Voltage Regulation (Batt. Mode) : }10%
– Frequency Range (Batt. Mode) : 60 Hz or 50 Hz }1 Hz
– Transfer Time : 20 ms typical
– Waveform (Batt. Mode) : Simulated Sine Wave
Baterai:
– Battery Voltage : 24 VDC
– Low Battery Alarm Voltage : 20.4 VDC 2%
– Overcharge Protection : 30.0 VDC 2%
Dimensi Produk:
– 293 X 231.5 X 82.5 mm (D x W x H)
Berat Produk: 2.55 kg
AC Charger
– Constant Current Charge Voltage : 28.6 VDC 2%
– Floating Charge Voltage : 27.4 VDC 2%
– Maximum Charge Current : 10 A or 20 A
Protection :
– Full Protection : Overload, and short circuit protection
Indicator :
– Line Mode : Green lighting
– Battery Mode : Yellow lighting
– Low Battery : Yellow flashing every 2 seconds
– Shutdown Mode : Yellow flashing every 5 seconds
– Charging Mode at Power On : Green flashing every 2 seconds
– Charging Mode at Power Off : Green flashing every 5 seconds
– Overload : Red flashing for 0.5 sec. every second
– Overcharging : Red flashing every 5 seconds
– Fault : Red lighting
Alarm
– Low Battery : Sounding every 2 second
– Overload : Sounding every 0.5 second
– Overcharging : Continuously sounding for 30 minutes, then shutdown
– Fault : Continuously sounding for 30 minutes, then shutdown
Operation Environment
– Storage Temperature : -15 to 50
Note :
– Kontak kami sebelum melakukan order, untuk menjamin ketersediaan stoknya
– Berfungsi sebagai inverter DC to AC Power Dan sebagai UPS dengan tambahan baterai eksternal
– Paket tidak termasuk baterai
